Looking for a heat exchanger software bundle! then look no further. Heat Exchanger Suite (HExS) has arrived. Heat Exchanger Suite is a software that combines the features of eight heat exchanger software products under one license. this provides the convenience of using eight products without needing to install each one separately.

Heat Exchanger Suite contains the following software, all software below has it’s own unique features and screens of which all can be read about by clicking on each software link;

  1. Shell and tube heat exchanger design (S&THex)
  2. Shell and tube condenser design (CnD)
  3. Helical coil heat exchanger design (HCHex)
  4. Double pipe heat exchanger design (DHex)
  5. Vertical thermosiphon design (VTD)
  6. Gasketed plate heat exchanger design (PHex)
  7. Air cooled heat exchanger design (ACHex)
  8. Kettle reboiler design (KRD)

Included with the software also the following physical properties software;

  1. Physical properties estimation database (PhysProps) – read about this software here
  2. PhysPro Fluid properties – read about this software here

Physical properties software are included as a separate installation with the full version of this software.

Due to the extended features for heat exchanger suite we have only listed each of the software contained above with links to each product. Along with the tools conatined within each software; heat exchanger suite also includes the following tools;

  1. Units converted containg 23 measurements and 200 unit conversions
  2. Water and steam properties
  3. Fouling factors
  4. Material thermal conductivity
  5. Air properties at atmospheric pressure
  6. PProps physical properties tool, contains 500 fluids
  7. Backup and restore tool, to backup all saved settings and user databases along with any saved projects under default saving folder.

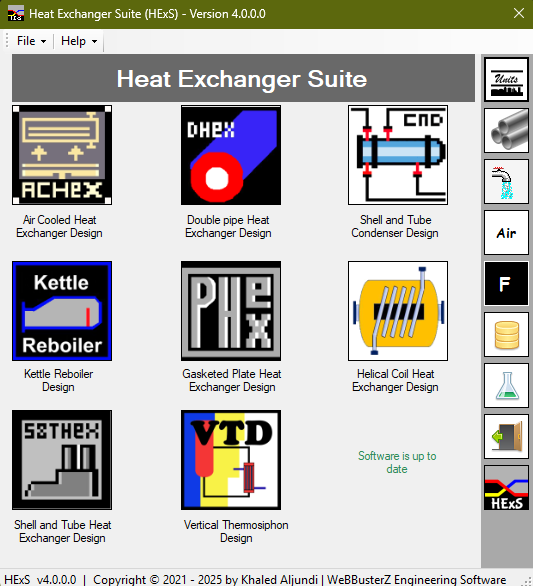

Heat exchanger suite main screen
Some tools

Screen shots

This software is updated regularly to check the latest update history please click here. for more UpToDate screen shots consult each individual product screen shots.

To see more screen shots please check the following URLs

For screen shots on Flickr – Click here

For screen shots on Facebook – Click here

System Requirements

Microsoft dot Net 4.8 framework

45 MB free disk space

64 MB Ram

The software should work on Windows 7, Windows 8, Windows 10 and Windows 11

Demonstration video

The video below from an older version. New updated video is coming soon.

Time line:

00:00:00 Features
00:05:11 Air cooled heat exchanger design (ACHex) – Saved example demo
00:09:26 Double pipe heat exchanger design (DHex) – Saved example demo
00:13:51 Shell and tube condenser design (CnD) – Saved example demo
00:17:47 Kettle reboiler design (KRD) – Saved example demo
00:21:26 Gasketed plate heat exchanger design (PHex) – Saved example demo
00:24:01 Helical coil heat exchanger design (HCHex) – Saved example demo
00:26:17 Shell and tube heat exchanger design (S&THex) – Saved example demo
00:30:31 Vertical thermosiphon design (VTD) – Saved example demo

Version History and update log for this software can be found here
